Prismatic Russian binoculars by the firm of K. P. Hertz model BU 1904

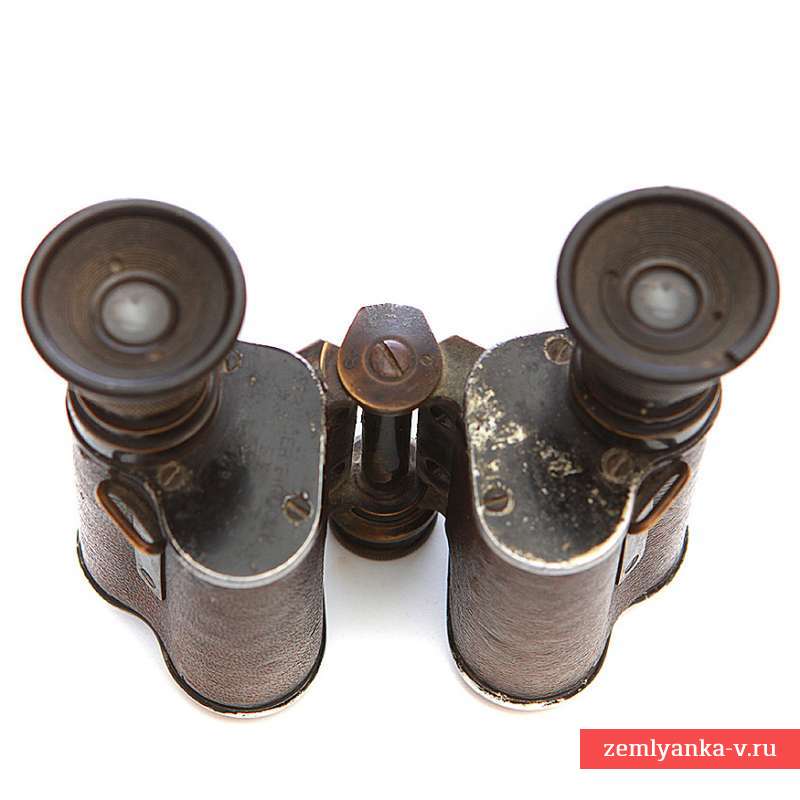

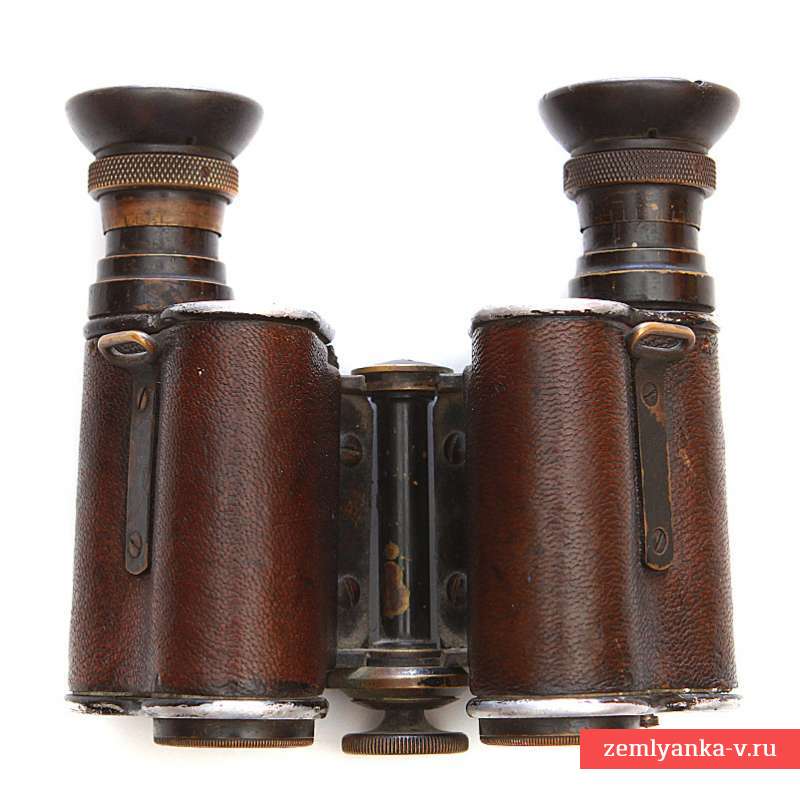

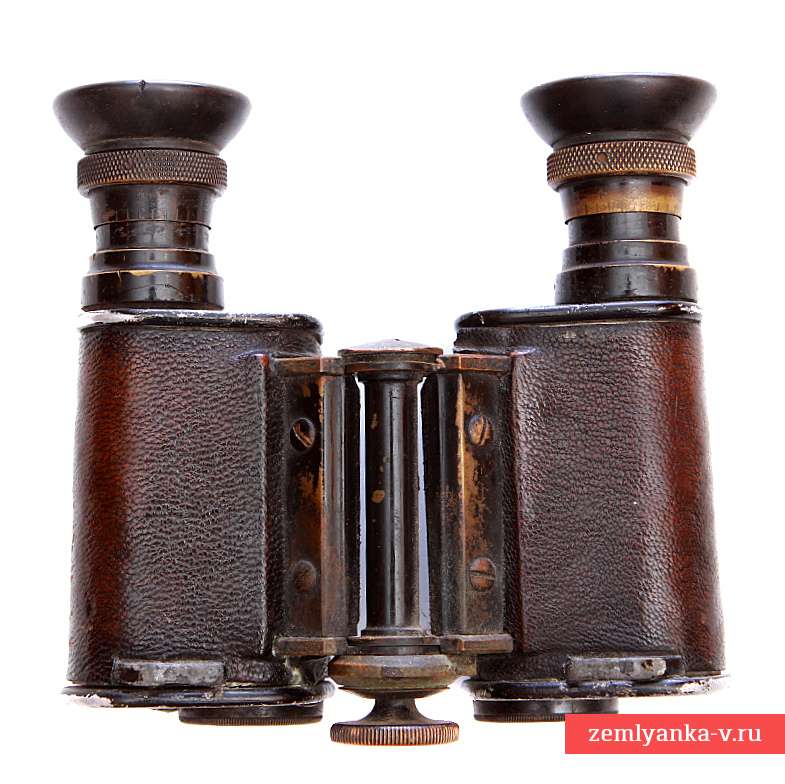

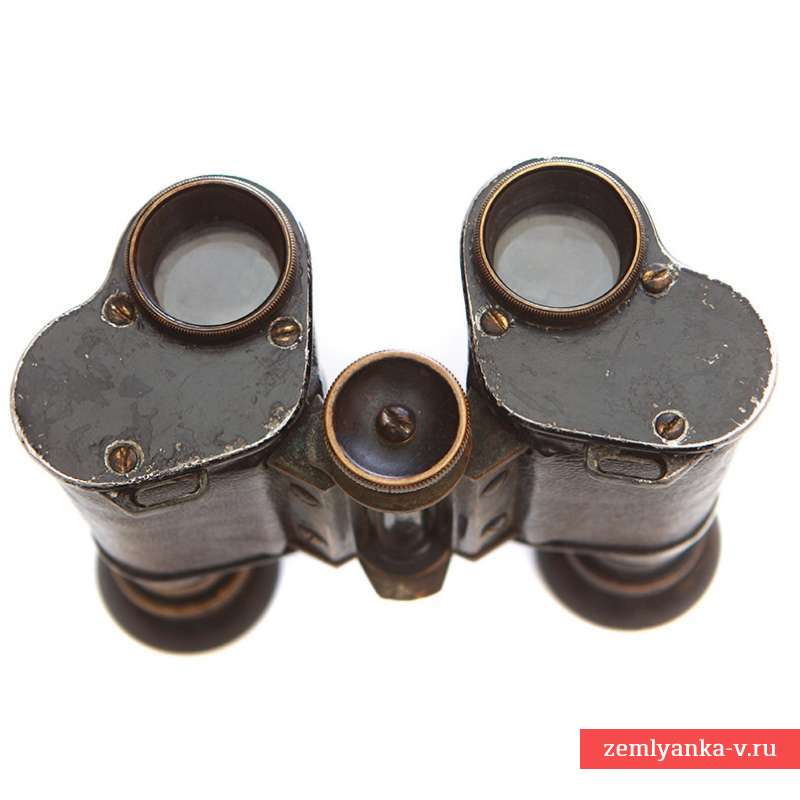

Original and quite rare collectible binoculars in satisfactory condition, needs minor cleaning. The 8X magnification. Lens diameter 20 mm. Case monoculars of the binoculars is made of aluminum alloy, covered with natural black leather. Lenses and the eyepieces are threaded directly into the housing of the optic tubes and fixed with the retaining screws. The covers for the eyepieces is made of aluminum alloy (can be brass), are heart-shaped and are attached to the housings monoculars with screws. Fixing the position of the prisms inside the body of the monocular is carried out by pressing them to milled surfaces (bridges) of the housing casing covers using cardboard strips. Adjusting the binoculars provided by technological process of manufacturing of binoculars and a selection (adjustment) of the prisms and in the process of operation to adjustment is not subject. The eyecups on the binoculars are free to rotate around its axis due to the special design of the fastening. In the field of view of the right eyepiece of the binoculars could have mounted a diaphragm angular mesh adopted in Russia of the sample. Glass angular grid in the data model in the RIA could not be installed.

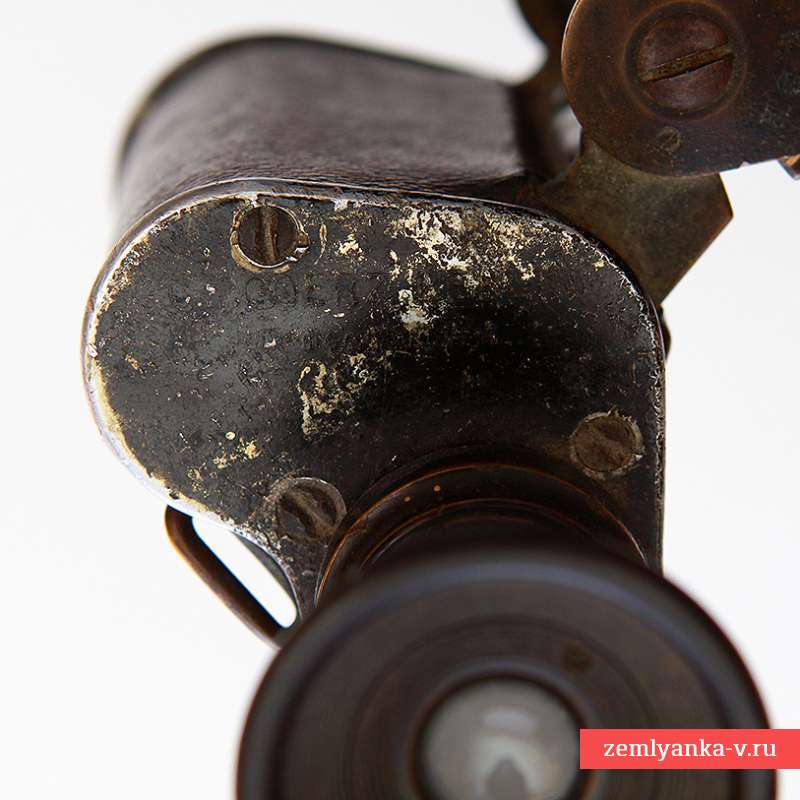

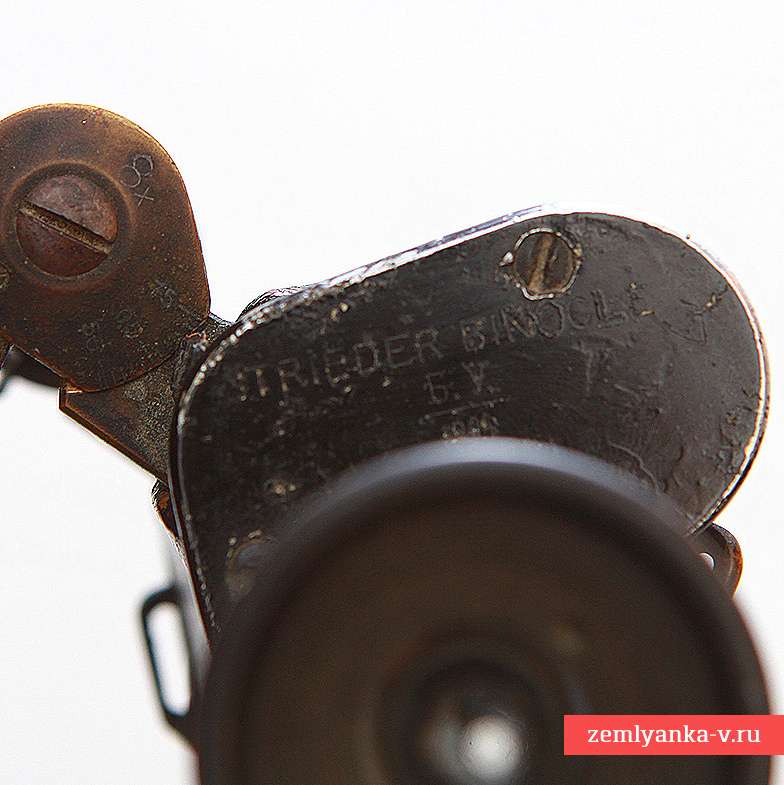

On the ocular caps markings: on the left is C. P. GOERZ BERLIN Armee Mod. Pat. on the right - TRIEDER IF , below B. W./1904 and the inventory number of the binoculars. Marking small print made by engraving (with subsequent filling of the text with silver solder on the brass caps). The serial number of the binoculars according to the numbering of the company Optische Anstalt C. P. Goerz embossed on the axle of the hinge near the right eyepiece.

In 1903 the German company "Optische Anstalt C. P. Goerz AG develops several new models of military prismatic binoculars for the infantry and cavalry without "enhanced stereoscopic effect" due to the current until 1908 patent prizes. The models are designed for officers have increased 6x, 7x and 8x, objective lens diameter 20 mm and structurally different from each other. Binoculars 6х20 with the original bridge design, dubbed "Mantelglas" and 7 x 20 ("neues Modell") officially accepted to supply the Imperial army and get a reference code D. F. 03. Model ones 8x20 offered by other countries , including Russia. The main artillery Directorate (GAU) RIA conducts the test model the Hertz ones 8x20, resulting in a pair of binoculars receives the code mark "B. W./1904" (symbol of military prismatic binoculars 9х20 and ones 8x20 adopted in RIA and confirming compliance with the binoculars "exemplary" (approved by the GAU in the year) models of the binoculars from this manufacturer). In the end the German firm enters into a contract for the supply of these binoculars for the Russian army. Binoculars were supplied to Russia from 1905 to 1908, then was replaced by a similar model, made in Russia (in Riga) and the designation of B. W./1907.
