Prismatic field binoculars 8*30 of the Zeiss in Nadinska made by order of the USSR

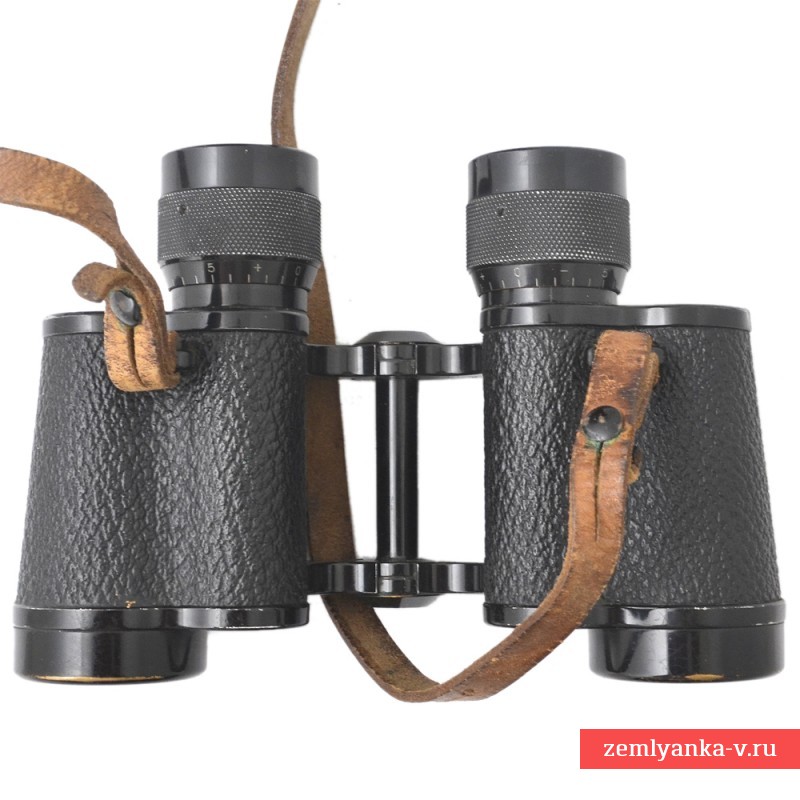

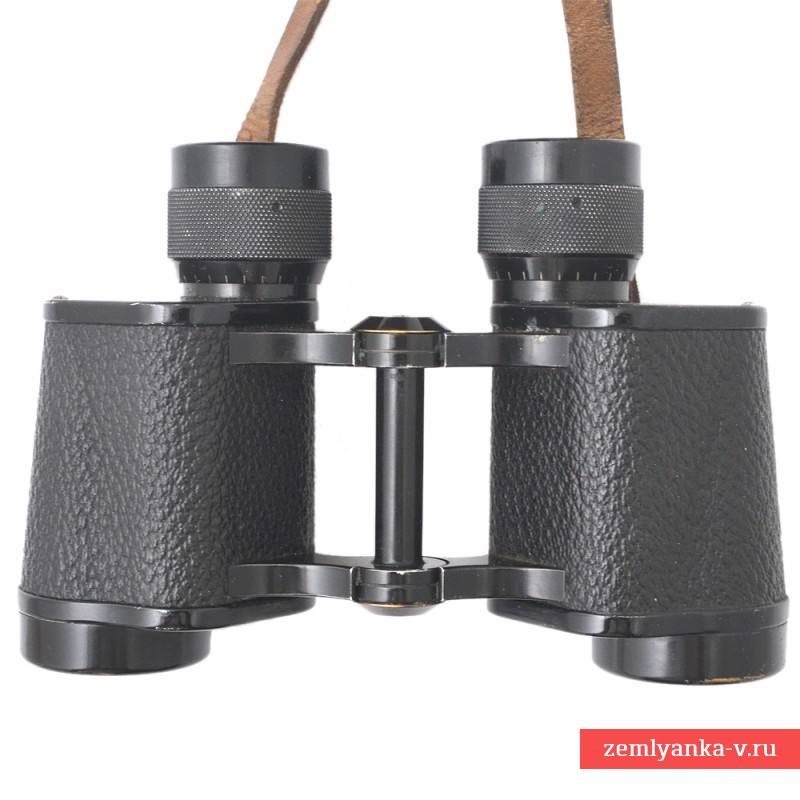

Prism wide angle binoculars, high quality with separate focus, with great probability manufactured in Holland by the firm of K. Zeiss by order of the USSR to the Supreme command of the red army. The magnification of the binoculars 8 times, objective lens diameter 30 mm prism System — Porro-1.

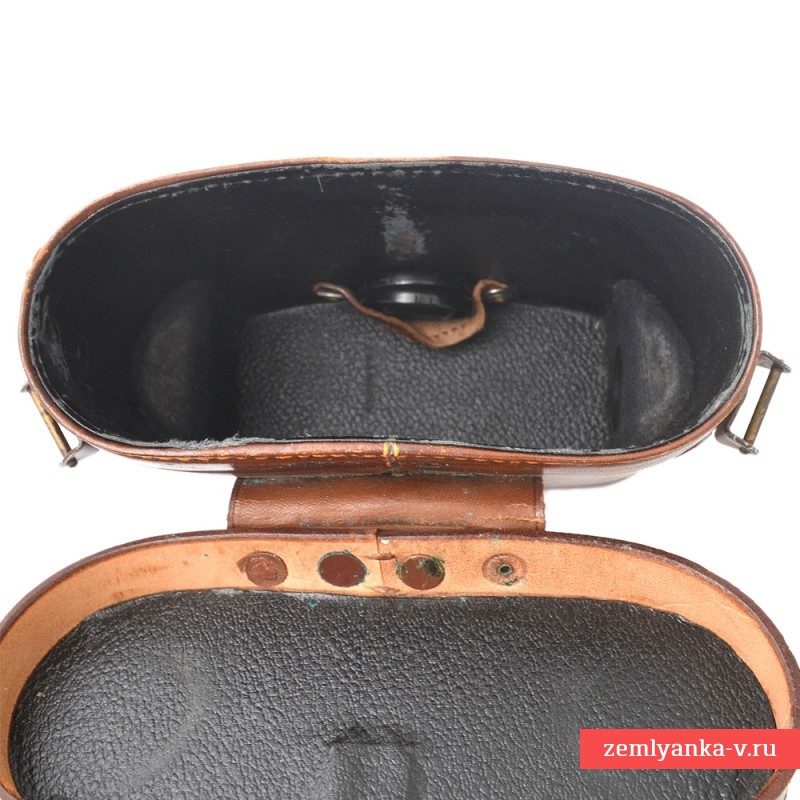

A binocular is a optical instrument, consisting of two telescopes (monoculars), connected by a hinge. Each monocular in turn, consists of an adjustable eyepiece Assembly with applied on the ocular coupling divisions in diopters for quick installation of binoculars on eyes, body with upper and lower covers, upper and lower tides in the hinge Assembly and a sling swivel for attaching a neck strap and lens Assembly. The body of the monocular is covered with gutta-percha imitation leather cover color black, all other metallic parts are painted in black color. Optics binoculars is not coated. In the field of view of the right eyepiece with glass angular mesh points in "thousandths" adopted in 1913, at the beginning of RIA, and then in the red army of the sample. Price small division of the grid — 0-05, large — 0-10. Case, military, brown, rigid, covered with leather. Consists of a body installed on the movable metal hinges for the fastening shoulder strap and a cover connected to the housing with a leather hinge, at the same time serve for mounting the case to a belt. Shoulder strap is missing. The skeleton housing is made of fiber. At the junction of the leather hinge to the lid of the case decorated with brass loop for additional fastening of the case with binoculars to camping gear. This device was introduced by the order of Minister of war in the Russian Imperial army in 1912 and later found application in the red army in the period from 1918 to 1930. In the closed position, the cover case is fixed with spring-leather clasp constituting a single unit with cap and attached thereto by a rivet. Inside the box are special pads that serve to lock upper caps of the binoculars when laying it in the case. Also inside the case there is a nest for laying two yellow filters, consists of a leather strap attached to the wall of the box by two rivets.

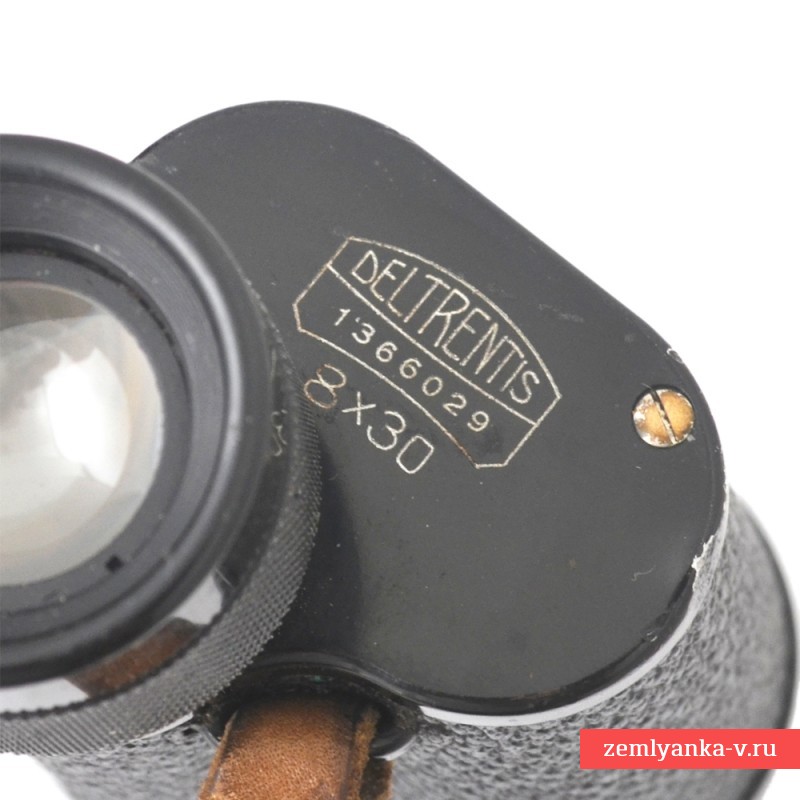

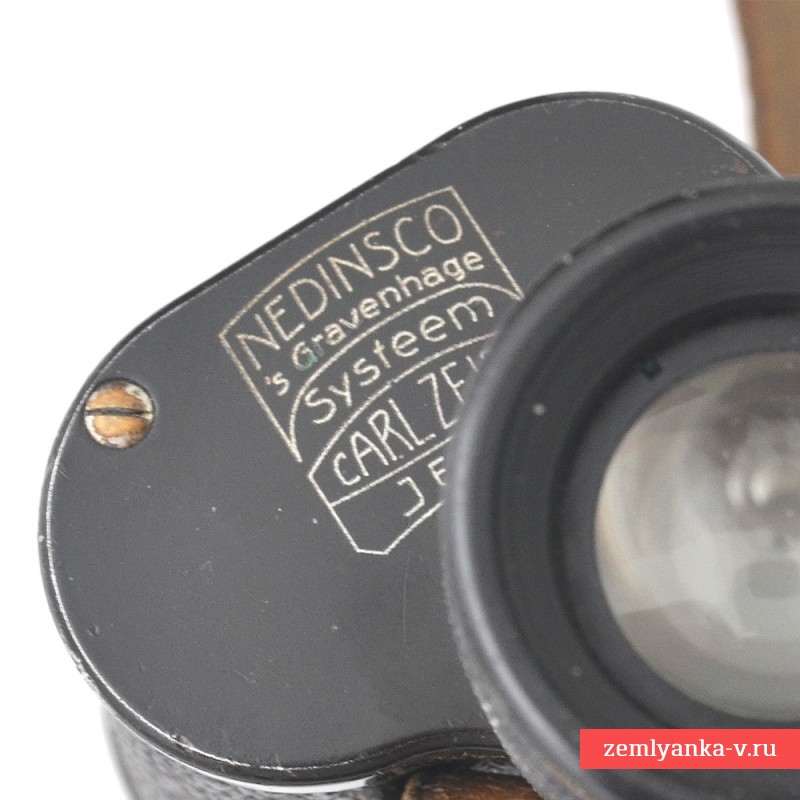

On the upper lids (from the eyepiece): inside of the logo "Carl Zeiss" in the form of achromatic lens: DELTRENTIS 1366029 . Under the logo: 8x30. Left cover: Inside a logo that represents a combination of the logos of companies "Nedinsco" and "Carl Zeiss", located under each other: NEDINSCO s Gravenhage Systeem CARL ZEISS JENA. Marking made by engraving and then filling the text white.

After the First world war, in accordance with the terms of the Treaty of Versailles, the optical firm "Karl Zeiss" were forbidden to manufacture any military products . To exit this position in 1921, the German company signed a secret cartel agreement with the American company Bausch and Lomb in Rochester (new York). First of all, the American company has helped its German partners to circumvent the points of the Treaty of Versailles banning military to restore German industry. Due to interest deductions, which the company Bausch and Lomb were regularly paid Zeiss in the currency of the amount of all his military orders, Zeiss built a large military optical factory in the Dutch town of Veile, near the border with Germany. The plant was in the hands of the Dutch optical company "Nadinska" and in fact is a branch of Zeiss.

Additional item secret agreement honey American firm and concern "Zeiss" includes a condition relative to placing the brand "Medynsko-Zeiss" on any product that uses Zeiss technology. Specified a cartel was of great help during the process of the remilitarization of Germany. Moreover, getting certain orders from the army and Navy, "Bausch and Lomb" immediately handed to the German partners the data of technical specifications, which constituted a military secret. "Zeiss" in turn, undertook to convey to his American partners technology proprietary trade secrets of Zeiss glass and some other products in exchange for a seven percent royalty on all sales of military products (except field glasses). All these agreements were reached privately, officials were only notified the us naval attaché in Berlin and then only in part directly related to the fleet.

Moreover, these two companies have divided among themselves the whole international market for military optics, and a dominant role in the resulting cartel played "Zeiss" and his influence was so great that he was appointed the chief of military products in the "Bausch and Lomb" (in fact , the person acted as the agent of the German military and technical intelligence in the US). The company Bausch and Lomb has focused on the supply of optical instruments in USA, the same firm Zeiss had to provide military optics in the world. As a result, when before the Second world war Britain, France and other countries turned to an American company with orders for military optical instruments, she said that she downloaded the orders of the army and Navy of the US and kindly recommended to refer to "Nadinska", i.e. to the Germans. As a result, after the start of the war the British, the French were without optical devices. There is evidence, and procurement of the USSR military optical instruments of the firm "Nadinska" in the prewar period, in particular on the supply in the USSR scopes in 1929. On the delivery of military binoculars while documentary evidence no, but there is some indirect evidence of this. In particular, the presence in the extant samples of binoculars 8x30 a coward all Golan production 1926 the manufacture of the angular grids , as approved by the GAU in 1913 the sample used in that period in the USSR, as well as the presence of casings brass half-rings for additional fastening of boxes to camping gear, also taken at the beginning only in the Russian Imperial army and later in the red army. In addition, certain proof of the use of such binoculars in the red army is the presence in the collections of these binoculars with the repair scenes of Soviet artillery bases. Judging by the numbers on the remaining binoculars, supplied to the USSR 8x30 binoculars was not less than 3000 pieces.

After Hitler came to power in Germany, design centres and factories Zeiss were closed to American partners. At the same time, Bausch and Lomb both before and after the start of the war in Europe continued to send detailed information about their technical achievements and the orders of the American army and Navy. These data have allowed Hitler's General staff to monitor the quantitative and qualitative development of the American artillery, air force and submarine fleet. In 1940, the U.S. Department of justice and the Senate Committee headed by Harry Truman, acting in the interests of state-monopoly complex eliminated the American-German optical cartel as threatening to U.S. national security.
