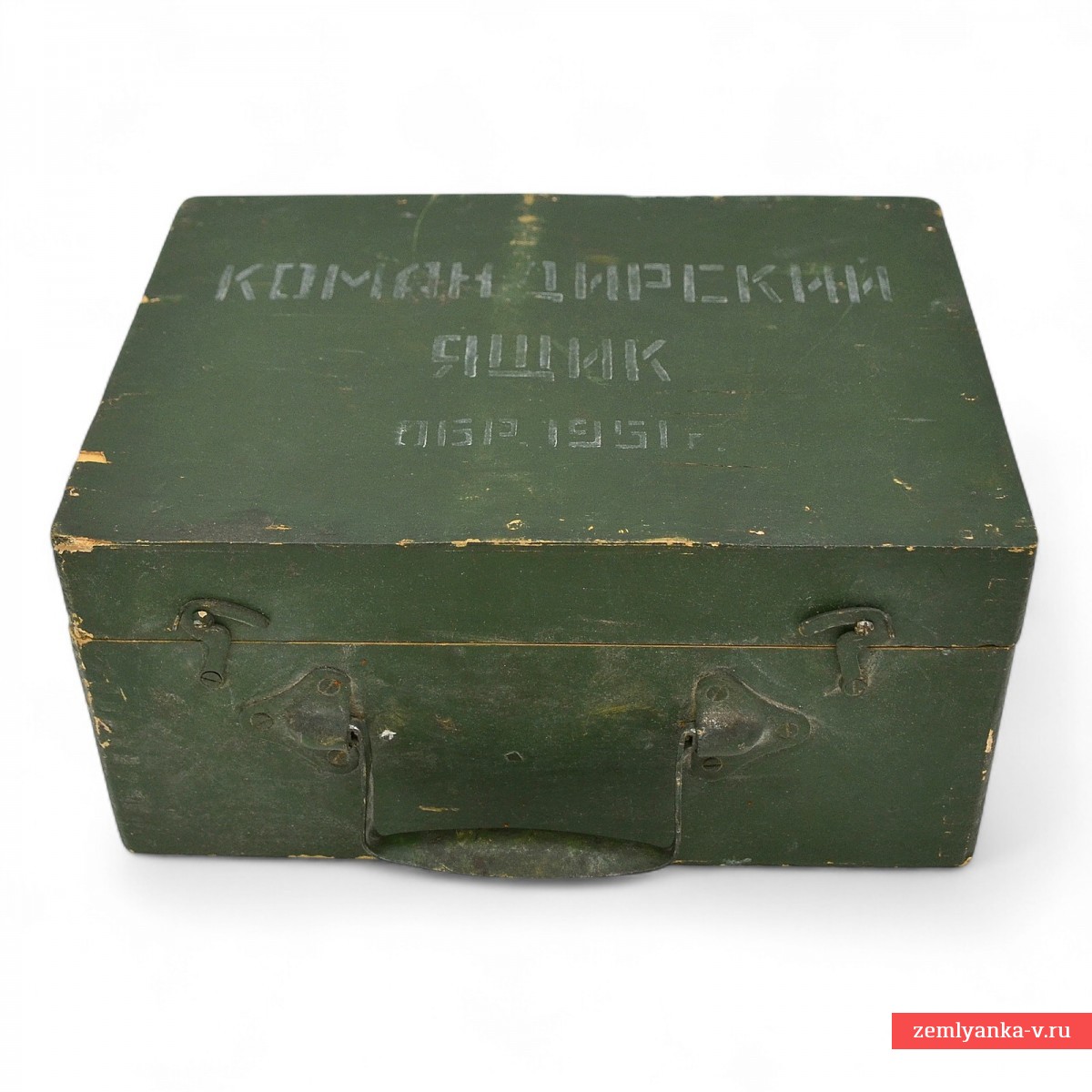

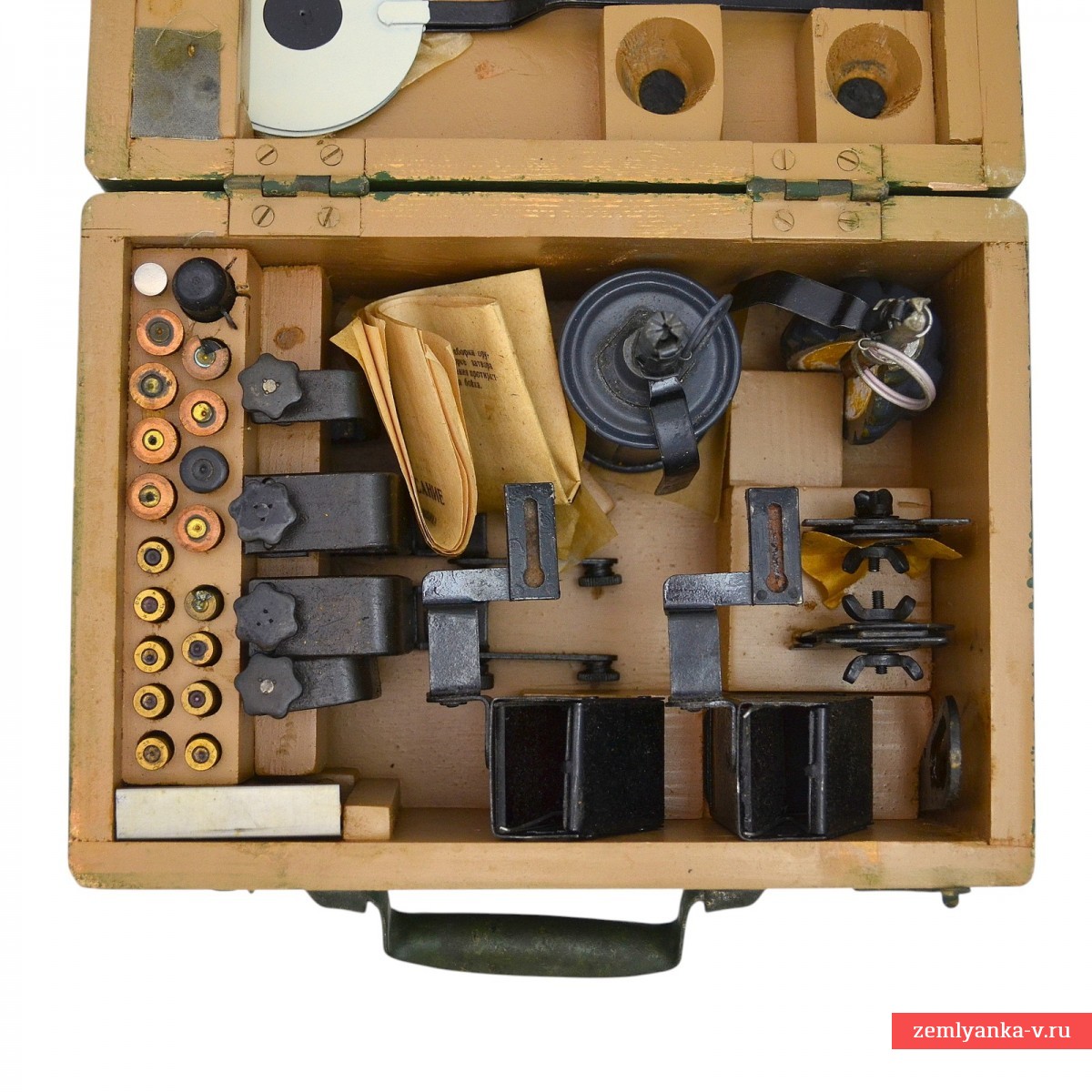

Commander's box KYA-51

The original and extremely rare box is in excellent condition. Fully complete. Dimensions – 290*210*140 mm. Weight — about 3,500 kg.

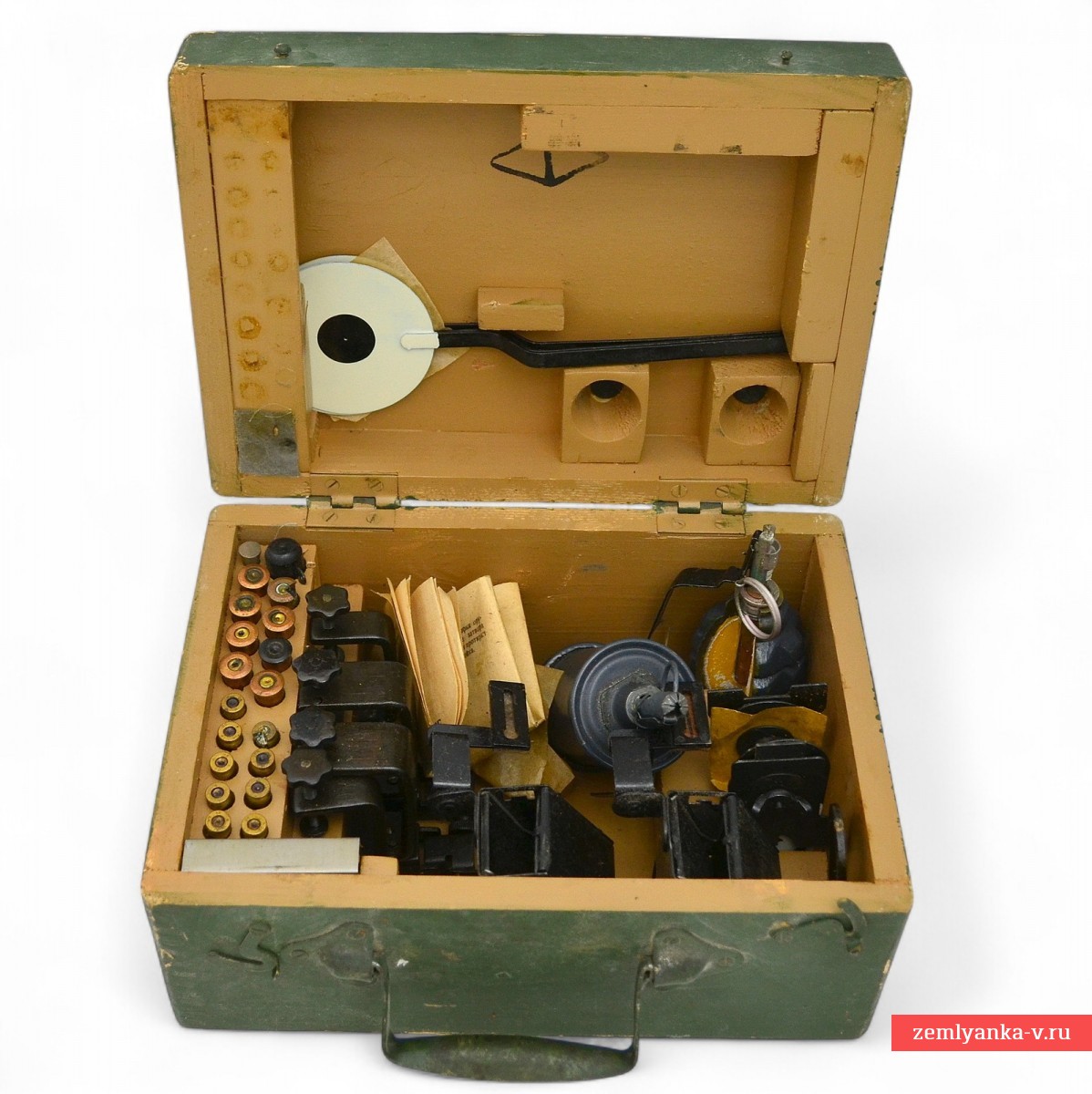

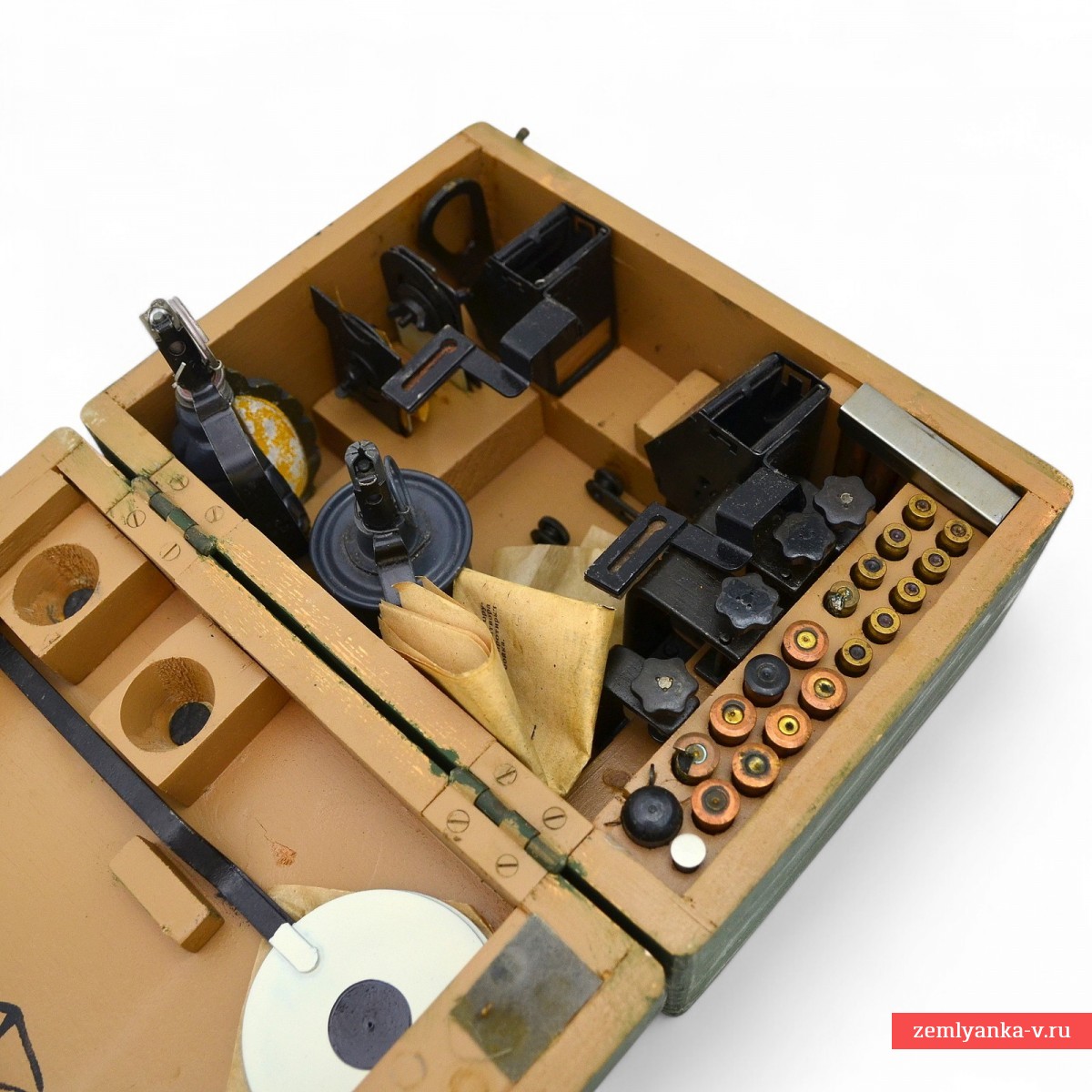

The kit includes:

1. AN OSTENTATIOUS FRONT SIGHT. The front sight is used to show the correct position of the front sight in the slot of the sight, as well as to show the correct position of the front sight when aiming at the target. It consists of three plates fixed on a screw by clamping wings. In the upper plate there is a cutout in the shape of the sight slot, and in the middle one — in the shape of the front sight. The aiming points are marked on the bottom plate: on one side there is a black circle, on the other side there is a head target.

1. HAND POINTER (2 pcs). The hand pointer is used to practice and check the uniformity of aiming. A hand pointer consists of a metal disc and a pen. The front side of the pointer is painted white, and in the middle of the pointers are applied: a) a black circle, b) a head piece (a target? 5), c) chest shape (target? 6). In the center of the black circle and the targets there is a hole for the pencil point to pass through. To evaluate the results of aiming, three holes with a diameter of 3.5 and 10 mm are made in the upper part of the disc.

1. UNIVERSAL FOLDING DIAPHRAGM

It is used to show the correct position of the front sight in the sight slot directly on the weapon, as well as to show and check the correct aiming of the weapon at the target. The diaphragm consists of a clamp with a clamping screw, a diaphragm lever, a strap with an eyepiece, a set screw and a switch. The diaphragm is mounted on the weapon (in the rear of the receiver) using a clamp, with the clamping screw of the clamp located on the left and the diaphragm switch on the right.

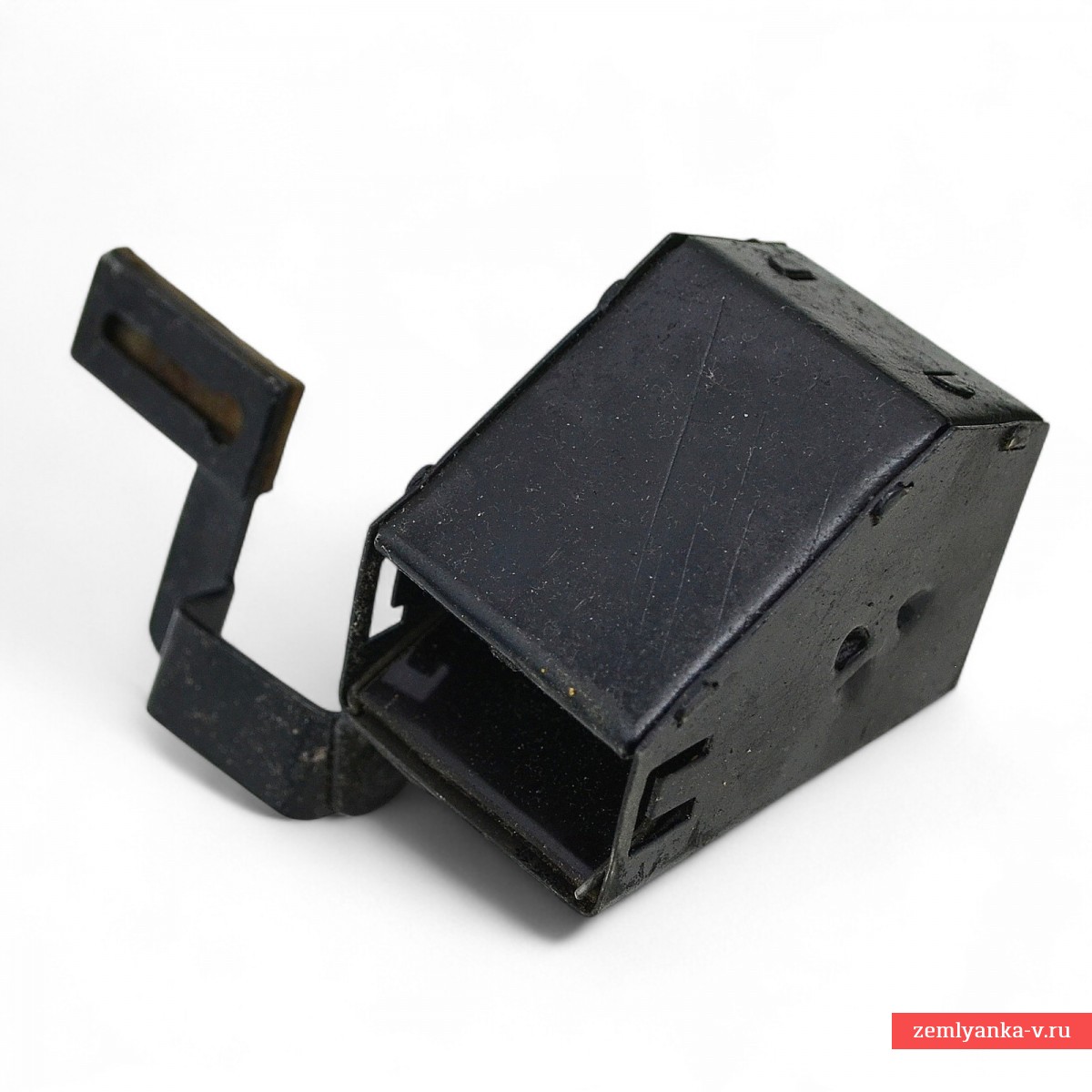

4. UNIVERSAL ORTHOSCOPE WITH A CLAMP (2 pcs). The universal orthoscope is used to check the accuracy of aiming from ALL SAMPLES of small arms of 7.62 mm caliber. It consists of a metal body with a mirror fixed inside, a bracket and a clamp with a clamping screw. Due to the double reflection of light (glass and mirror), the orthoscope gives a direct image. On rifles (carbines) and submachine guns, the orthoscope is mounted by covering the box (receiver) with a clamp from below the aiming pad. On machine guns (DP, DPM, SG-43), the orotoscope is attached by the clamp of the receiver from above, behind the aiming block.

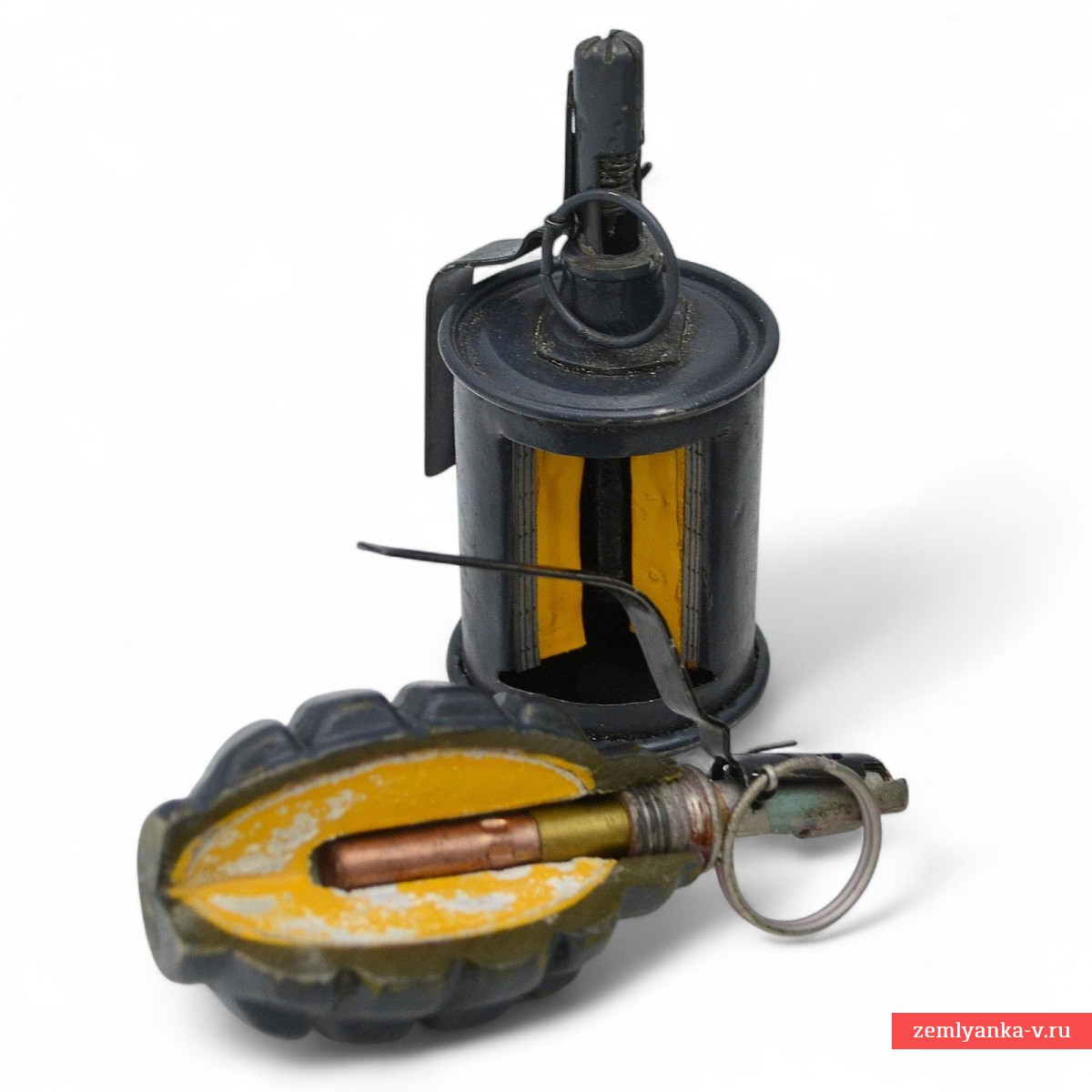

4. TRAINING SPLIT GRENADE F-1. It serves as a visual aid in studying the internal structure of the F-1 defensive grenade and the interaction of parts. It is an exposed F-1 grenade (WITH a FUSE), which has a quarter cut out for clarity of the internal device.

4. RG-42 TRAINING SPLIT GRENADE

It serves as a visual aid in studying the internal structure of the RG-42 offensive grenade and the interaction of parts. It is a cooled RG-42 grenade (WITH a FUSE), which has a quarter cut out for clarity of the internal device.

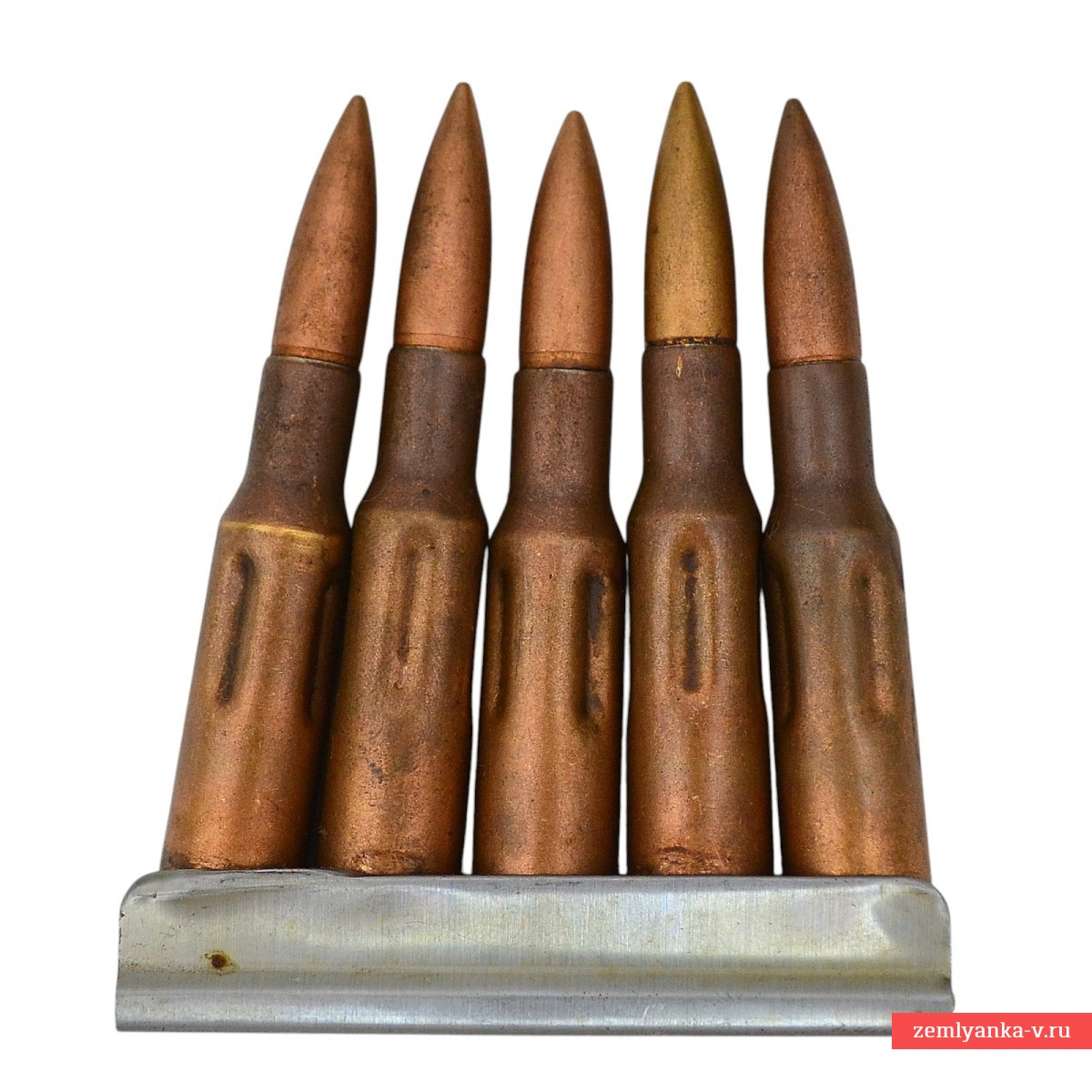

7. TRAINING RIFLE CARTRIDGES 7.62 x 54 IN A CLIP

7. TRAINING PISTOL CARTRIDGES 7.62 x 25

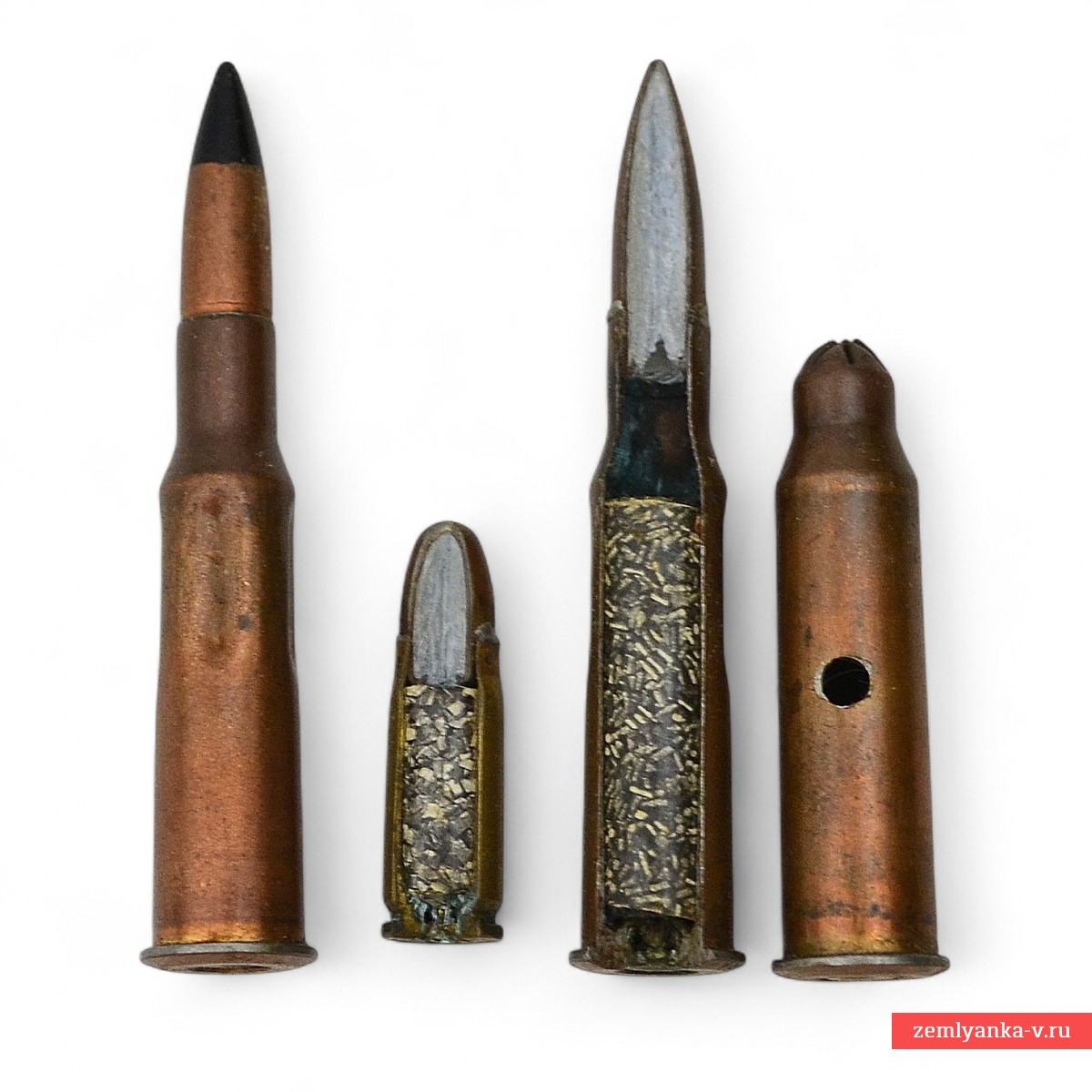

7. EDUCATIONAL SPLIT RIFLE CARTRIDGE 7.62 x 54. It serves as a visual aid when studying the internal structure of the cartridge. It is an exposed cartridge, in which a quarter is cut out for clarity of the internal device.

7. EDUCATIONAL SPLIT PISTOL CARTRIDGE 7.62 x 25. It serves as a visual aid when studying the internal structure of the cartridge. It is an exposed cartridge, in which a quarter is cut out for clarity of the internal device.

7. TRAINING RIFLE CARTRIDGE 7.62 x 54 BLANK

7. TRAINING RIFLE CARTRIDGE 7.62 X 54 WITH A LIGHT BULLET. The bullet head is not colored

7. TRAINING RIFLE CARTRIDGE 7.62 X 54 WITH A HEAVY BULLET. The bullet head is colored yellow

7. TRAINING RIFLE CARTRIDGE 7.62 X 54 WITH AN ARMOR-PIERCING BULLET. The bullet head is painted black

7. A 7.62 X54 TRAINING RIFLE CARTRIDGE WITH A B-32 BULLET. The bullet head is painted black with a red belt.

7. A 7.62 X54 TRAINING RIFLE CARTRIDGE WITH A BS-40 BULLET. The head of the bullet is colored black, the rest of it is red, and the shell casing is colored black.

7. A 7.62 X54 TRAINING RIFLE CARTRIDGE WITH A TRACER BULLET. The bullet head is colored green

7. A 7.62 X 25 TRAINING PISTOL CARTRIDGE WITH AN ARMOR-PIERCING INCENDIARY BULLET. The bullet head is painted black with a red belt.

7. A 7.62 X 25 TRAINING PISTOL CARTRIDGE WITH A TRACER BULLET. The bullet head is colored green.

7. A STEEL MIRROR. A steel mirror is used to inspect the chamber of small arms and consists of a cylinder and a head that has a mirror surface. To inspect the chamber, the mirror must be inserted into the chamber with the cylindrical part forward, while the weapon must be tilted with the muzzle down.

7. THE MIRROR

The mirror is intended for inspection of the bore. The oval mirror itself is attached by means of a frame to a wooden base at an angle of 45 degrees. A handle is screwed into the base for ease of use. To inspect the bore, remove the shutter and insert the mirror into the receiver so that the image of the bore is visible in it. By pointing the muzzle of the weapon towards the light, the condition of the bore surface can be viewed in a mirror.

22. a screwdriver. Standard screwdriver for rifle model 1891 (or carbine). The screwdriver is used to disassemble and assemble the rifle, turn the firing pin when assembling the bolt of the rifle (carbine), to fix the wipe on the ramrod and to check the exit of the firing pin.

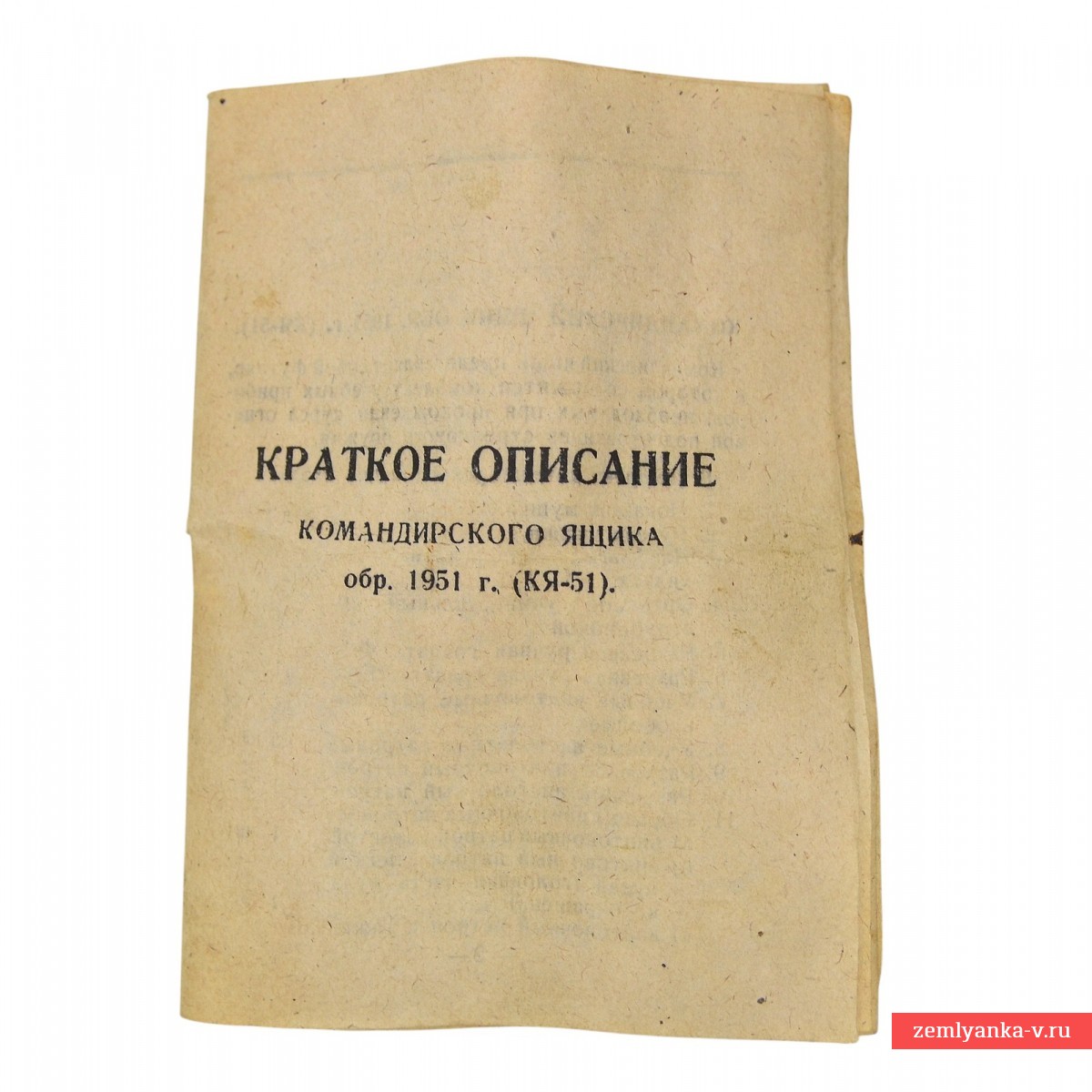

22. BRIEF DESCRIPTION OF THE COMMANDER'S BOX, model 1951 (KY-51)

.
